A Reveal admin with access to Admin > Camera List may see the following camera error codes: Road camera vertically misaligned, and Horizon not in view. Use this article and the camera alignment preview to adjust the camera angles.
Camera misalignment affects the road-facing camera’s calibration and may trigger false events, too many events, or no events. When the camera is mounted in the correct position and the lens is angled accurately, unsafe driving behaviors are detected and videos are uploaded to Reveal.
In this article:

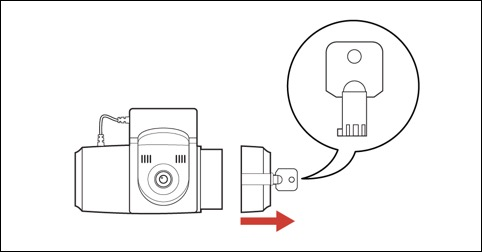

Find the barrel key and hex key supplied with the camera. To order more supplies, contact Support. Allow 5-10 working days for shipping.
Find a colleague with access to Admin > Camera List. While you stay in the vehicle and adjust the camera, they can check the camera alignment preview in Step 3. Check the camera alignment preview.
Make sure that:
- The vehicle is on.
- The vehicle is in an area with good network coverage.
- The vehicle is parked on a flat surface with at least 25 yards (23 meters) of clear space ahead.
- There is a horizon, surrounding buildings and/or parallel road markings in sight. This helps to inform accurate horizon calibration. See examples.

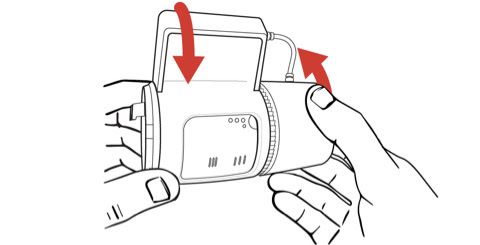

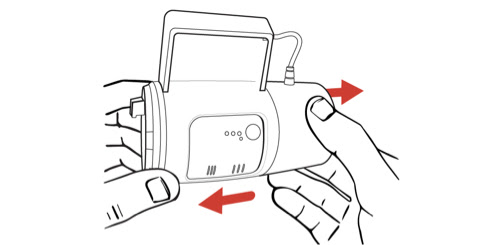

Pull and twist the side panel to adjust the road-facing lens mount. The angle should be relative to the slope of the vehicle’s windshield.
When your vehicle is ready, ask your colleague with admin access to log in to Reveal and:
- Go to Admin > Camera List.
- Find the camera in the list and click VIEW.
-
Find one of the following error codes:
- Road camera vertically misaligned
- Horizon not in view.
- Use the CAMERA ALIGNMENT PREVIEW to check the lens alignment.
