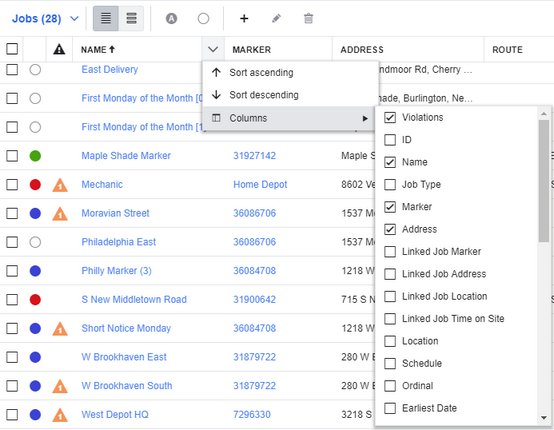

Specifying List Columns

The address of the job, including the country.

The arbitrary code that is assigned to this job.

The days of the week when the job can be completed.

A free-form description of the job.

The attributes that the driver must not provide to complete this job.

The attributes that the route must not provide to assign this job to the route.

The earliest date when this job can be completed.

The drivers forbidden from completing this job.

The unique identifier of the job.

The type of job. If this scenario is synchronized with the Verizon Connect platform, the job type must be one that was defined in the Verizon Connect platform. If the job is part of a linked stop, this is the type of the primary job.

The latest date when this job must be completed.

The address of the secondary job that is linked to this job.

The latitude and longitude coordinates of a job that is linked to this job.

The unique identifier for the marker of the secondary job that is linked to this job. When a job based on this recurring job is assigned to a route, a secondary stop to the linked job is assigned to the route immediately after this job.

The time on site of the secondary job in a linked stop. The time on site is added on the Create Job > Linked Stop screen.

The latitude and longitude coordinates of the job's location.

The unique identifier of the marker where this job is located. Markers are listed in the Markers list panel.

The name of the job.

The position of the job in a recurring job. If this is the first job in a recurring job, the ordinal is 0. If the recurring job is for three times a week on Mondays, Wednesdays, and Fridays, and the job is on the second Monday, the ordinal is 3.

The preferred drivers for completing this job.

The priority of the job. One of "Lowest", "Low", "Normal", "High", or "Highest".

The ID or name of the recurring job that was used to create the job.

The attributes that the driver must provide to complete this job. These attributes could be a specific license category, training to handle a class of goods, or ability to operate one type of equipment.

The types of depots that must be visited before the job; for example, as part of a pick-up.

The types of depots that must be visited after the job; for example, as part of a drop-off.

The attributes that the route must provide to assign this job to the route.

The attributes that the vehicle must provide to complete this job. These attributes could be a high load capacity, a crane, PTO capabilities, or a refrigeration unit.

The route the job is assigned to.

The arbitrary attributes that are associated with this job.

The length of time that a driver is expected to spend at the customer site servicing this job. The units can be hours (h), minutes (m), and seconds (s).

The end time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

The start time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

The end time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

The start time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

This column shows a Violations icon if there are violations related to the job. The number on the icon indicates how many violations there are.

The zone that this job is located in. If the zone is assigned to a driver, this job gets assigned to that driver.

The custom properties specified on this job.

The address of the recurring job.

The day of the week on which to base the recurring job. If the base date is a Monday, recurring jobs can be scheduled on Mondays within the given month. If you also define "Vary Before" or "Vary After", recurring jobs can be on the given number of days on either side of a Monday. The base date can be later than the delivery dates.

The arbitrary code that is assigned to the recurring job.

The days of the week a job can be scheduled when using this recurring job.

A free-form description of the recurring job.

The attributes that the driver must not provide to assign the recurring job to the route.

The attributes that the route must not provide to assign the recurring job to the route.

The earliest date when a job based on the recurring job can start.

The description of an error that has occurred for this recurring job.

The drivers forbidden from completing jobs that are based on this recurring job.

How often does a recurring job need to be completed per period. For example, 3 times per week.

The unique identifier of the recurring job.

At which interval does a recurring job need to be completed. For example, every 3 weeks.

The job type for the scheduled job.

The latest date when a job based on the recurring job can start.

The address of a job that is linked to this scheduled job.

The latitude and longitude coordinates of a job that is linked to this scheduled job.

The unique identifier for the marker of a job that is linked to this job. When a job based on this recurring job is assigned to a route, a secondary stop to the linked job is assigned to the route immediately after this job.

The time on site for a job that is linked to this scheduled job.

The longitude and latitude coordinates of the scheduled job's location.

The unique identifier for the marker where this scheduled job is located. The marker is listed in the Markers list panel.

The name of the recurring job.

The preferred driver for jobs that are based on this recurring job.

The priority of the scheduled job. One of "Lowest", "Low", "Normal", "High", or "Highest".

The attributes that the driver must provide to assign the scheduled job to the route.

The types of depots that must be visited before the recurring job; for example, as part of a pick-up.

The types of depots that must be visited after the recurring job; for example, as part of a drop-off.

The attributes that the route must provide to assign the scheduled job to the route.

The attributes that the vehicle must provide to assign the scheduled job to the route.

The arbitrary attributes that are associated with the scheduled job.

The date when a job based on this recurring job can be created. It is based on the "Base Date", but, unlike the base date, must be within the date range in which jobs can be scheduled.

The length of time that a driver is expected to spend at the customer site servicing this scheduled job. The units can be hours (h), minutes (m), and seconds (s).

The end time of the scheduled job's second time window. Drivers can arrive at the job site between the "Time Window 2 Start" and "Time Window 2 End" times.

The start time of the scheduled job's second time window. Drivers can arrive at the job site between the "Time Window 2 Start" and "Time Window 2 End" times.

The end time of the scheduled job's time window. Drivers can arrive at the job site between the "Time Window Start" and "Time Window End" times.

The start time of the scheduled job's time window. Drivers can arrive at the job site between the "Time Window Start" and "Time Window End" times.

The type of recurring job. For example, "One off", "Daily", or "Times per month".

The number of days after the "Base Date" that a job can be scheduled. For example, if you set "Vary After" to 1 and "Base Date" is Wednesday, the job can be scheduled on either Wednesday or Thursday.

The number of days before the "Base Date" that a job can be scheduled. For example, if you set "Vary Before" to 1 and "Base Date" is Wednesday, the job can be scheduled on either Wednesday or Tuesday.

The driver zone within which the recurring job occurs.

The custom properties specified on the scheduled job.

The number of US dollars paid to the driver per hour worked.

The name or unique identifier of the driver's current shift pattern.

The end address for this driver's routes.

The end location, as a latitude and longitude coordinate pair, for this driver's routes.

The unique identifier for the end marker for this driver's routes.

The description of an error that has occurred for the driver.

The driver's first name.

The unique identifier of the driver.

The maximum length, in days, that a multi-day route can be for the driver.

The driver's middle name.

The driver's full name.

The number of US dollars paid to the driver per hour of overtime worked.

The date when the driver's shift pattern ends.

The date when the driver's shift pattern starts.

The names or unique identifiers of the driver's shift patterns. Shift patterns may not overlap.

The start address for this driver's routes.

The start location, as a latitude and longitude coordinate pair, for this driver's routes.

The unique identifier for the start marker for the driver's routes.

The driver's last name.

The attributes that apply to the driver.

The preferred vehicle for this driver.

The custom properties specified for the driver.

The formatted address of the marker, not including the country.

The category that this marker is in and that has been defined in the Verizon Connect platform.

The country that the marker is in, as a two letter country code.

A description of an error that has occurred for this marker.

The unique identifier of the marker.

The map coordinates of the location where the marker's location intersects with the street (where the driveway meets the road).

The map coordinates of the marker, as a latitude and longitude coordinate pair.

The name of the marker.

Notes about the marker.

The entities (jobs, drivers, vehicles, routes, or recurring jobs) using this marker.

The custom properties specified for this marker.

The street address where routes for this vehicle start and end.

Whether routes for this vehicle are allowed to include ferry crossings. Either "Yes" or "No".

The number of US dollars per kilometer or mile driven.

Percentage of the vehicle's expected speed. The default is 100%.

Whether routes for this vehicle should consider historic traffic data. Either "Yes" or "No".

The description of an error that has occurred for the vehicle.

The number of US dollars for using this vehicle.

The weight of the vehicle, with the vehicle's load, in the units defined in your user settings.

The type of hazardous material the vehicle may carry. One of "Non hazardous", "hazmat1", "hazmat2", "hazmat3", "hazmat4", "hazmat5", "hazmat6", "hazmat7", "hazmat8", "hazmat9", or "hazardous".

The height of the vehicle in the units defined in your user settings.

The unique identifier of the vehicle.

The length of the vehicle, measured from kingpin to last axle, in the units defined in your user settings.

The length of the vehicle in the units defined in your user settings.

The latitude and longitude coordinates of the location where routes for this vehicle start and end.

The unique identifier for the vehicle's base marker, where routes for this vehicle start and end. The marker is listed in the Markers list panel.

The maximum number of jobs the vehicle can service in one route.

The name of this vehicle.

The vehicle's number of axles.

The vehicle's number of trailers.

The vehicle's number of wheels.

The attributes that the driver must provide to assign the vehicle to a route.

A unique identifier.

Whether the vehicle must approach a stop on the same side of the road as the stop entrance, preventing crossing the street and oncoming lanes of traffic. Either "Yes" or "No".

The custom attribute assigned to this vehicle.

The amount of time spent at the end location, for example for unloading the vehicle.

The amount of time spent at the depot when returning to reload the vehicle.

The amount of time spent at the start location, for example for loading the vehicle.

The weight of the vehicle, without the vehicle's load, in the units defined in your user settings.

The type of vehicle. For example, "Automobile" or "Straight Truck".

The width of the vehicle in the units defined in your user settings.

Whether the vehicle that is planned to be used on the route is allowed to travel on ferries.

Whether the break start times on this route are relative to the shift start time.

The total cost of the route in US dollars.

The number of US dollars paid to this driver per hour worked.

The number of US dollars per kilometer or mile driven.

The date when the route starts.

The distance of the route in the units that are defined in your user settings.

The name of the driver assigned to the route.

The number of hours that the vehicle will be driven while servicing this route.

The percentage of the speed at which vehicles are expected to travel on the route.

Whether to include the time it takes to drive from the last job to the end depot in the route calculations.

Whether the route uses historic traffic data for making routing decisions.

Whether to include the time it takes to drive from the start depot to the first job in the route calculations.

The street address where the route ends.

The map coordinates where the route ends, as a latitude and longitude coordinate pair.

The identifier of the marker where the route ends. Markers are listed in the Markers list panel.

The time of day when the route ends.

The number of US dollars for using this route, excluding any variable costs for distance or driver pay.

View the routes in the route list on a Gantt Chart. This feature is available when you display routes in a list using the Display routes in a list button . The Gantt chart is also shown when selecting the Display routes in a group button , but you cannot interact with the Gantt chart by dragging jobs between routes or to a new position within a route.

The weight, including load, of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

The type of hazardous material that can be carried on the route. Applicable only to "truck" vehicle types. One of "Non hazardous", "hazmat1", "hazmat2", "hazmat3", "hazmat4", "hazmat5", "hazmat6", "hazmat7", "hazmat8", "hazmat9", or "hazardous".

The height of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

The total duration of this route.

The unique identifier of the route.

The number of jobs on the route.

The length from kingpin to last axle of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

The length of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Whether this route is part of a multi-day route which continues on the following day.

The maximum time the driver can spend driving the route.

The maximum number of jobs the route can contain.

The maximum total time of the route.

The name of the route.

The total time on the route before overtime rates must be paid.

The number of axles of the vehicle that is planned to be used on the route.

The number of trailers of the vehicle that is planned to be used on the route.

The number of wheels of the vehicle that is planned to be used on the route.

Whether the route uses a variable work shift.

The number of US dollars paid to this driver per hour of overtime worked.

The projected start time of the route.

Whether vehicles on the route are required to approach a stop on the same side of the road as the stop entrance, preventing crossing the street and oncoming lanes of traffic. Either "Yes" or "No".

The street address where the route starts.

The map coordinates where the route starts, as a latitude and longitude coordinate pair.

The identifier of the marker where the route starts. Markers are listed in the Markers list panel.

The time of day when the route starts.

The attributes that apply to the route.

The amount of time spent at the end location, for example for unloading the vehicle.

The amount of time spent at the depot when returning to reload the vehicle.

The amount of time spent at the start location, for example for loading the vehicle.

The weight, without load, of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

The name of the vehicle assigned to the route.

The type of vehicle that is used for calculating the route. For example, "Car" or "Straight Truck".

This column shows a Violations icon if there are violations related to the route. The number in the icon indicates how many violations there are.

The width of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

The custom properties specified for this route.

The stop number or, if this job is at the depot, the Depot icon .

The arrival time of the job.

The arbitrary code that is assigned to the job.

The days of the week for which the job is scheduled.

The departure time of the job.

The driver attributes that the job must not provide.

The route attributes that the job must not provide.

The distance to the job site in kilometers.

The earliest date that this job can be routed.

The drivers forbidden from completing this job.

The unique identifier of the job.

The idle time of the job. This is time when the engine ignition is on, but there is no vehicle movement.

The name and address of the job. Click on the job's name to open the Job dialog box, from where you can edit the job's details.

The latest date that this job can be routed.

The latitude and longitude coordinates of the job's location.

The unique identifier for the vehicle's base marker, where routes for this vehicle start and end. The marker is listed in the Markers list panel.

The order of the job in a recurring job, if it is part of a recurring job.

The preferred driver for completing this job.

The priority of the job. One of "Lowest", "Low", "Normal", "High", or "Highest".

The recurring job the job was created from.

The driver attributes that the job must provide.

The types of depots that must be visited before the job; for example, as part of a pick-up.

The types of depots that must be visited after the job; for example, as part of a drop-off.

The route attributes that the job must provide.

The vehicle attributes that the job must provide.

The arbitrary attributes associated with this job.

The length of time that will be spent at the customer site servicing this job; typically in hours and minutes, or minutes, but may also include seconds.

The time remaining until arrival at the job site.

The end time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

The start time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

The end time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

The start time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

If this job is linked to another job, the Unlink option allows you to unlink the two jobs.

The violations generated by this job.

The custom properties specified on this job.
