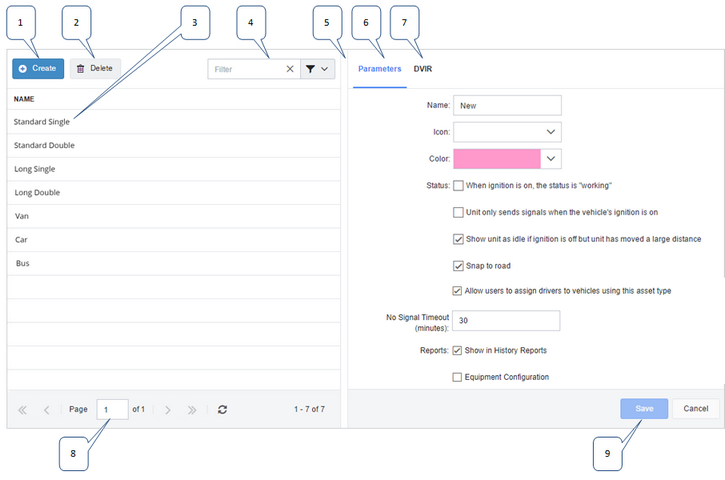

From the Tasks section of the navigation bar choose Asset Types to open the Asset Types screen. This screen lets you define the different types of assets (vehicles) that you are monitoring in your account. Each asset type specifies the way the system determines the status of an asset and indicates if assets of that type should appear in reports about the fleet that includes the asset.
Note
Some versions of this product do not include support for asset types. If you do not have an Asset Types screen, you can speak to your support representative about adding it.
-
Click Create to define a new asset type. A new type called "New" is displayed in the Parameters panel, where you can change its name and specify the way assets of the new type behave.
-
Click Delete to remove the definition of the selected asset type.
-
The list of asset types is displayed in the left panel. Click an asset type to select it. Its details are displayed on the Parameters tab on the right.
-
If the list of asset types is very long, type the name of the asset into the Filter field to narrow down the asset list.
-
Drag the divider between the list of asset types and the Parameters or DVIR panel to resize them.
-
The Parameters tab lets you set general properties for the asset type.
-
The DVIR tab lets you associate forms with the asset type.
-
If the list of asset types is very long, use the navigation controls to move between different pages of the list.
-
The Save button becomes enabled if you have made any changes to the parameters of the new or selected asset type. Click to save the edits.
Once you have defined asset types, you can use one of these methods to assign them to vehicles:
-
From the hierarchy tab of the Fleet & Teams screen (on the left Fleets tab) click Set Asset Type .
-
From the Vehicles screen click the vehicle, select Edit Vehicle and set the asset type from the Details tab of the Vehicle Details dialog box.
-
From the Hierarchy screen set the asset type on the Vehicle tab.
Note
You do not need to assign asset types to everything that has a GPS unit. Any vehicle (asset) that has no specified asset type has the default behavior:
-
The asset is only considered to be "working" when it is idling with a productive input.
-
The asset is only given a status of "no signal" if the last report indicated the ignition was on and more than 30 minutes have elapsed.
-
The asset is included in all reports about fleets that include the asset.
-
If DVIR forms are enabled for the driver of a vehicle and there are DVIR forms defined with the names "DVIR", "Pre DVIR", or "Post DVIR", these forms are presented to the user.
Tip
Once you have assigned an asset type to a vehicle, you can edit the vehicle to change its asset type, but you cannot remove the asset type completely. If you want to return a vehicle to the state where it had no asset type assigned, you can create a new asset type to represent the default state. This state should have the following property settings:
-
Use default icon is selected.
-
When ignition is on, status is "working" is cleared.
-
Unit only sends signals when the vehicle's ignition is on is cleared.
-
Show unit as idle if ignition is off but unit has moved a large distance is selected.
-
Snap to road is selected.
-
No Signal Timeout is set to 30.
-
Show in History Reports is selected.
-
No DVIR form templates are selected.
