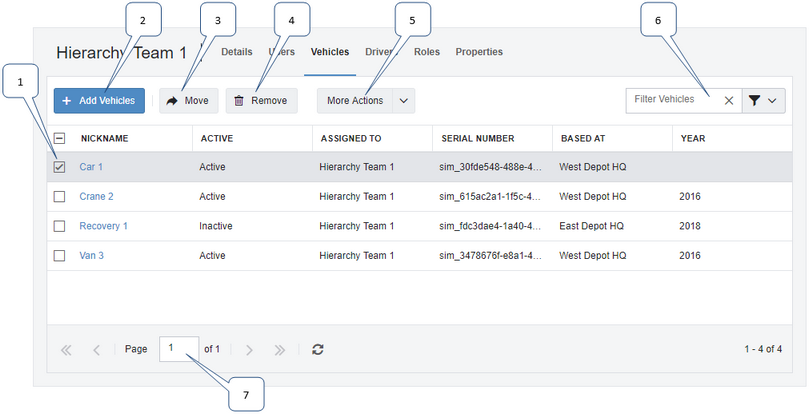

Vehicles Tab

1:

Select this check box if you want to remove the vehicle from the node, or move the vehicle to another node.

2:

Click Add Vehicles to open the Add Vehicles dialog box. Select the vehicles you want to assign to the node. Use the Filter Vehicles field or the node filter field, or both, to refine the list of vehicles.

3:

Select the check boxes beside the names of vehicles you want to move, then select Move to open the Move Vehicle dialog box. Select the node you want to move the vehicles to, then select Move Here. Alternatively, you can use the drag-and-drop functionality to move individual vehicles, or groups of selected vehicles, to a new node in the hierarchy tree. You are not asked to confirm this action.

4:

Select the check boxes beside the names of the vehicles you want to remove, then select Remove to open the Unassign dialog box. Select Yes to confirm the action, or No to cancel the action. The removed vehicles are not deleted, and can be reassigned later if needed.

5:

Select More Actions to view further tasks that can be performed for this node. Options in the pop-up menu are:

• Configure - Opens the Configuration dialog box, which is used to specify KPI values for the selected vehicle.
• Toggle Active - Switches the selected vehicles between an active and inactive state. The state of vehicles assigned to a node is indicated by the value ("Active" or "Inactive") in the Active column on the Details panel. When a vehicle has been set to "inactive" it is assigned to the "inactive" fleet on the Fleets & Teams screen, and can no longer be used for job or route assignment. Inactive vehicles are not shown on the Vehicles list until they are changed back to an active state.
• Set Install Type - Opens the Set Install Type dialog box, from which you can specify an install type of the selected vehicles.
• Set Asset Type - Opens the Set Asset Type dialog box, from which you can specify the asset type of the selected vehicles.
• Bulk Edit - Opens the Bulk Edit dialog box, from which you can set the icon color to represent the selected vehicles. Select a color from the grid, or select use default value. Select OK.
• Set Base Marker - Opens the Set Base Marker dialog box, from which you can specify the marker where the selected vehicles will be based. Drivers and vehicles must be based at the same markers to be assigned to one another.

6:

Use the Filter Vehicles field to find specific vehicles. Enter all or part of the vehicle's name, its driver's name, the vehicle's registration number, serial number, base marker name, year, make, model, color, install and asset types, or tags assigned to it.

7:

Enter a page number in the Page field to navigate to that page, or use the Previous and Next arrows to navigate between pages.
