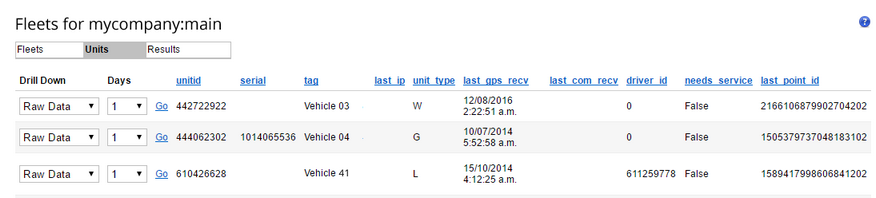

When you click Go for a fleet on the Fleets tab with the View Units command selected, the Units tab lists all the units installed on vehicles in the selected fleet:
This tab shows the following information about each unit installed on a vehicle in the fleet:
|
unitid |
The internal (system) ID of the unit installed on the vehicle. |
|
serial |
The serial number of the GPS unit. |
|
tag |
The name of the vehicle. |
|
last_ip |
The IP address of the last point received. |
|
unit_type |
Indicates the type of unit installed on the vehicle. This value can be:
|
|
last_gps_recv |
The timestamp of the last GPS signal received (in GMT time). |
|
last_com_recv |
The timestamp of the last cellular communication from the device (in GMT time). |
|
driver_id |
The internal (system) ID of the driver. |
|
needs_service |
Indicates if the vehicle is due for scheduled maintenance. |
|
last_point_id |
The internal (system) ID of the last data point (report) received from the unit. |
When troubleshooting, it is particularly useful to note the last GPS and last COM received. This information shows, for example, when a vehicle is reporting, but may not have a good GPS fix.
Note
Click a column header to sort the list by the values in that column.
From this screen, you can drill down to see additional information about the reports from a particular vehicle.
