Quick Start Dashboards

Driver Behavior

This is a printed page that might be out of date. To read the most up-to-date help content, visit https://fleet-help.verizonconnect.com.
  • Updated

The Driver Behavior dashboard details the total speeding over 75 MPH events recorded by vehicles, and the total number of vehicle idle hours logged, across your fleet.

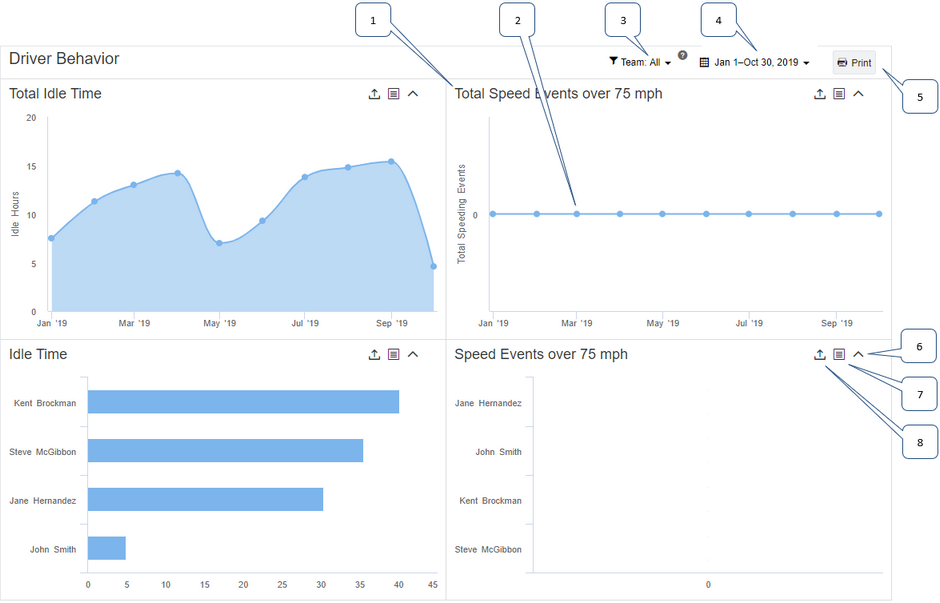

The dashboard also identifies the ten drivers in your fleet with the greatest number of idle engine hours, and the highest number of events that are triggered by driving at speeds higher than 75 miles per hour. The graphs shown on this dashboard are:

  • Total Idle Time: This line graph displays the total number of engine idle hours recorded across your fleet, or a specified sub-fleet, within the time period specified. Idle time is any time when the vehicle's ignition is "on", but the vehicle is not moving.

  • Total Speed Events Over 75 MPH: This line graph displays the total number of speeding events over 75 MPH (indicating speeding above the posted freeway speed limit in most US states) recorded across your fleet, or a specified sub-fleet, within the time period specified.

  • Idle Time: This bar graph identifies the ten drivers who have logged the greatest number of idle engine hours across the fleet, or a specified sub-fleet, within the time period specified.

  • Speed Events Over 75 MPH: This bar graph identifies the ten drivers who have logged the greatest number of speeding events over 75 MPH across the fleet, or a specified sub-fleet, within the time period specified.


  1. The title of each trend graph indicates which driver behavior indicators it shows.

  2. Each blue dot or line in a graph represents the average behavior of a driver in a sub-fleet of the current fleet, or the behavior of individual drivers with the ten greatest number of logged behavior events across the fleet. Hover over any point of the graphs shown in blue to view a tooltip that displays information about the graphed event type and the value logged for it. Similarly, hover over a horizontal line on a bar graph to view a metric tooltip.

  3. The Team and Fleet Filter indicates which team or fleet is represented by each graph. See Filtering the Driver Behavior Dashboard for guidance on how to use the filter.

  4. The Date Filter indicates the date range for the data displayed on the graph. See Filtering the Driver Behavior Dashboard for guidance on how to use the filter.

  5. Click Print dash_print_button.png to print all visible charts. Each chart is printed on a separate page. If you have selected the table view for a chart (by clicking Table dash_text_button.png), the table is printed instead of the chart.

  6. Click the up arrow dash_expand.png to expand the graph to full-screen, or the down arrow dash_shrink.png to restore the graph to its original size.

  7. Click Table dash_text_button.png to toggle between Chart and Table views. The Table view is useful if you need to copy data into a text editor or quickly view the raw data presented in a chart.

  8. Click Export dash_export_button.png to export the chart as an .xslx format (Microsoft Excel) spreadsheet file.

Filtering the Driver Behavior Dashboard

To specify the teams or fleets to include in the graph, or the date range of the data displayed, use the Team and Fleet Filter or Date Filter located in the upper right corner of the screen.


  1. The Team and Fleet Filter

  2. The Date Filter

To use the Team and Fleet Filter:

  1. Click the filter to open the filter drop-down box, then click the Teams or Fleets tab.

  2. Click the team or fleet whose data you want to view. As soon as you click on a team or fleet the drop-down box closes and the dashboard graphs are automatically updated.

To use the Date Filter:

  1. Click the filter to open the Date Filter.

  2. Select the date range for the data you want to view. Predefined date ranges include:

    • Yesterday

    • Last 7 Days

    • Last 30 Days

    • This Month

    • Last Month

    • This Quarter

    • Last Quarter

    • Year To Date

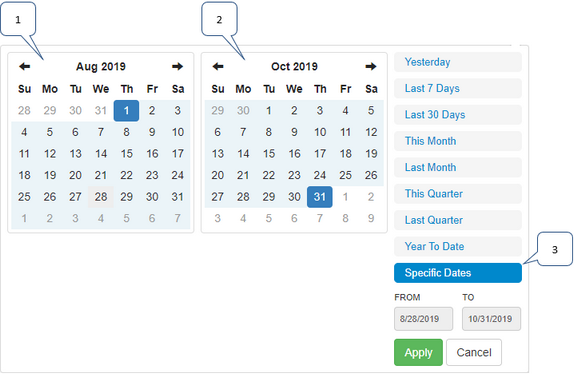

To choose custom dates click Specific Dates, then select the dates from the calendar control. The From and To fields are filled with your chosen dates. Click Apply to update the dashboard graphs.


  1. The date you select from this calendar populates the From field.

  2. The date you select from this calendar populates the To field.

  3. The Specific Dates button.
