EV charger markers show the locations of charging stations that can be used to the charge your electric vehicles.
These markers are a type of "Shared Marker". That is, they are Point of Interest markers provided to all customers. Unlike conventional markers, EV charger markers cannot be edited or removed, and are automatically updated with the latest information when it becomes available to Verizon Connect.
Currently, EV charger markers include information about the street address of the charger, the number of charge points at the location, the charger connection type, and the power output of these chargers.
To show or hide EV charger markers on the map:
-
Open the Map screen.
-
Click the Layers button

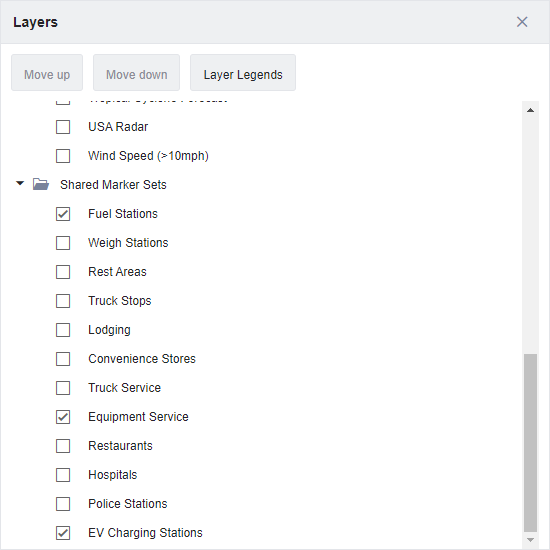

on the map screen toolbar. The "Layers" dialog box opens:
-
Scroll down to the "Shared Marker Sets" section.
-
Check the box beside "EV Charging Stations" to show EV charger markers on the map, or uncheck to remove these markers. The map layer is updated automatically.
-
Close the "Layers" pop-up window by clicking the 'x' button in the corner of the dialog box.
To view the details of an EV marker:
-
Open the Map screen.
-
Locate an EV charger marker on the map. EV charger markers can be identified on the map by their EV charger icon
. Note that EV charger shared markers are only visible if the map layer has been configured to show them. See the "Showing and Hiding EV Charger Markers on the Map" procedure described above for these steps. You can also search for specific EV charger markers using the Go To button.
-

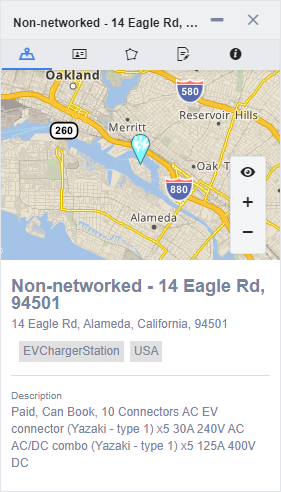

Click the marker with your mouse. The marker details dialog box opens:
The street address of the marker is shown above and below the mini-map, while the technical details of the charger are shown under the "Description" section. These details include:
-
Whether the charger requires payment.
-
Whether the charger can be booked in advance.
-
The number of charger connectors at the location, their types and power output
-
